775 High Torque DC Motor 12V 24V 4500 5500 12000RPM High Power Ball Bearing Motor for Electric Drill Grinder Fan Juicer.

Availability: In stock

US $2.52

Cheap And Discounts 775 High Torque DC Motor 12V 24V 4500 5500 12000RPM High Power Ball Bearing Motor for Electric Drill Grinder Fan Juicer Enjoy ✓Free Shipping Worldwide! ✓90 Days Buyer Protection. ✓Easy Return. ✓Money Back Guarantee.

Product Discription

Description

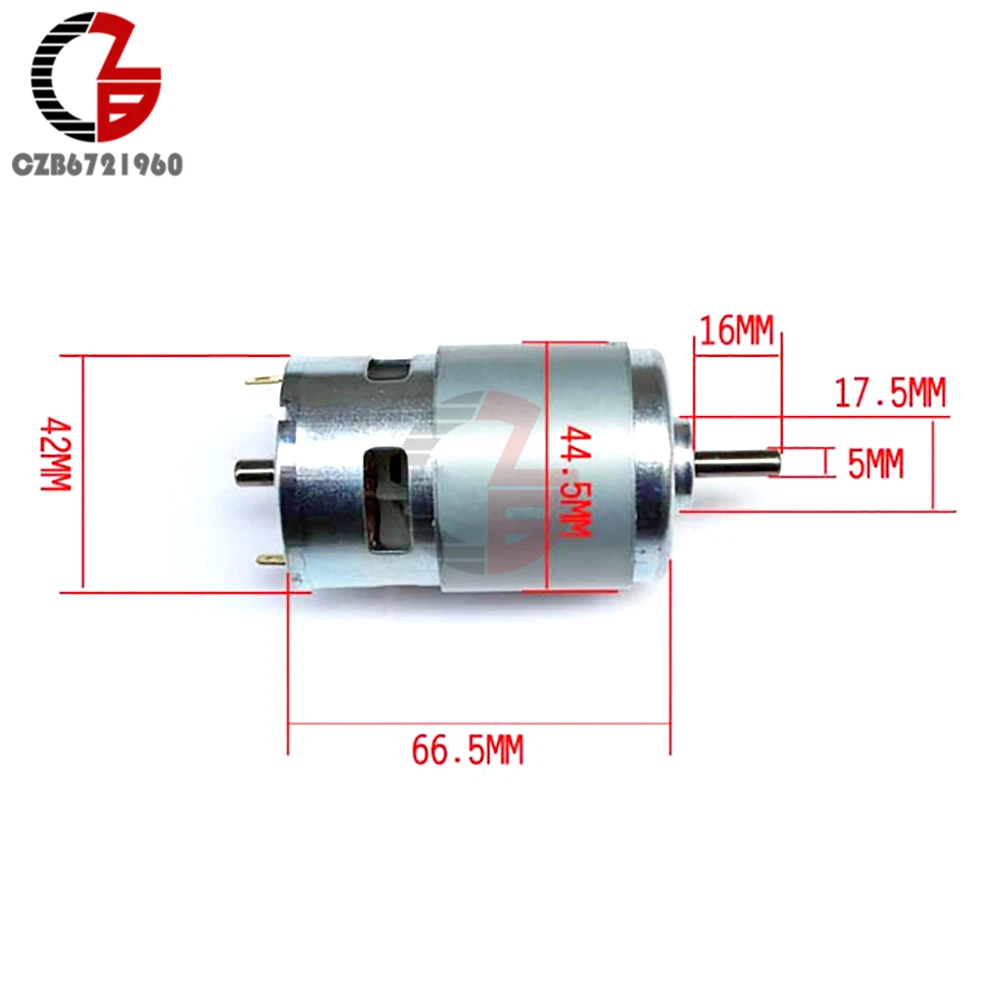

775 High Torque DC Motor 12V 24V 4500 5500 12000RPM High Power Ball Bearing Motor for Electric Drill Grinder Fan Juicer Specifications:   Rated voltage: 12V/24V No-load current: 1.2A Stall current: 3.25A No-load speed: 12000 rpm, 4500RPM rpm, 5500RPM rpm Motor step height: 4.5mm Motor step diameter: 17.5mm The length of the shaft: 16mm (the length of the shaft above the level of the step) Shaft diameter: 5mm shaft (cutting edge 1.5mm, cutting edge length 13mm) Motor diameter: 42mm Motor length: 66.5mm The step height of the motor tail: about 7mm The length of the shaft at the end of the motor: about 4.5mm Mounting hole pitch: about 29mm Mounting hole diameter: M4 screw Motor weight: 350g   Package Included:   1 x 775 Large Torque DC Motor
